Appendix A. Non-GUI Based
Example Design
Design Features
This manually-controlled (non-GUI based) example is a one channel
design using the microstrip transceiver quad at 6.25 Gbps. The input
clock frequency is 156.25 MHz and the interface is 40 bits wide. The
TX_P0 is connected to A4 and RX_P0 to C1 . The other transceiver quads
that are not used are powered off. Data patterns supported are PRBS23,
PRBS7, and the high frequency pattern ( 1010 ).
1
The checkers are only available for the PRBS23 and PRBS7 data
patterns.
The following parameters can be controlled during run-time:
■
■
■
■
■
■
Preemphasis—Main tap (The other tap controls are not available.)
Equalization
DC gain
VOD
Data pattern select
Serial loopback
The parameters are controlled using a combination of DIP switches and
push-button switches. See Table A–1 . The on-board frequency rate used
for the design is 156.25 MHz. Please set switch 6 in the clock setting DIP
switch bank (S8) to OPEN. Figure A–1 shows all the switches in the closed
position.

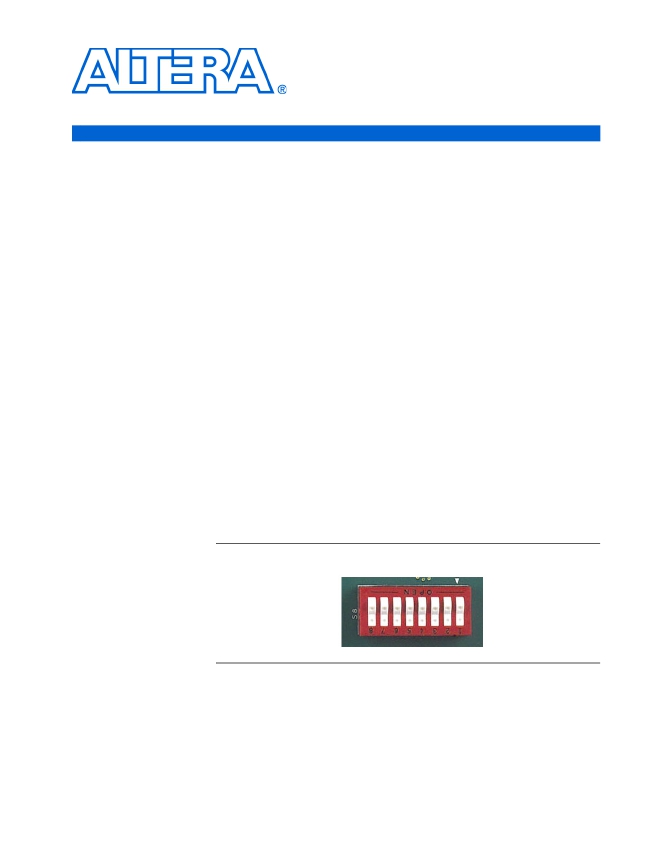

Figure A–1. Clock Setting DIP Switch Bank (All Switches In Closed Position)
Altera Corporation
Getting Started User Guide
A–1
June 2006
Transceiver Signal Integrity Development Kit, Stratix II GX Edition
